Generate a License

You can generate a license from the Extreme Networks Portal.

Before you begin

Before you can use a software license, you must generate it from the Extreme Networks Portal.

About this task

Follow this procedure to generate and obtain a software license.

Procedure

  1. Log in to the Extreme Networks Portal at https://extremeportal.force.com/ExtrLicenseLanding.
  2. If you do not have an Extreme Portal account, select Create a new Extreme Portal account.
    The following figure shows the Extreme Portal login window.
    Click to expand in new window

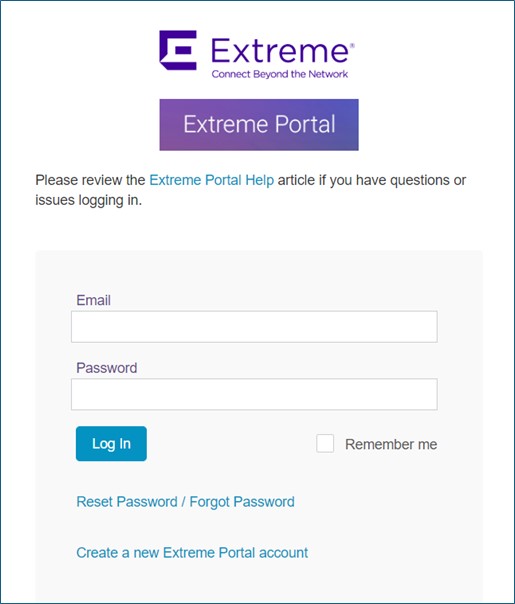

    Extreme Portal login window
  3. Enter your email and password. Select Log In.
    The Extreme Portal home page appears.
    Click to expand in new window

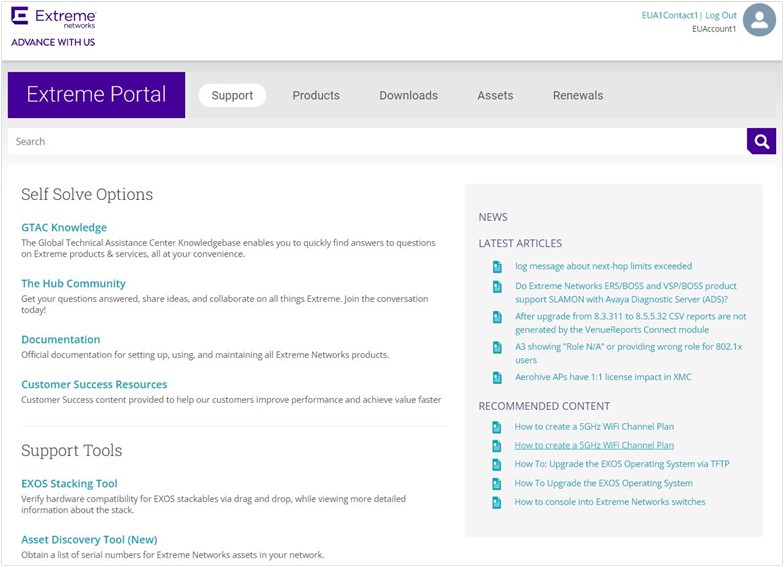

    Extreme Portal home page

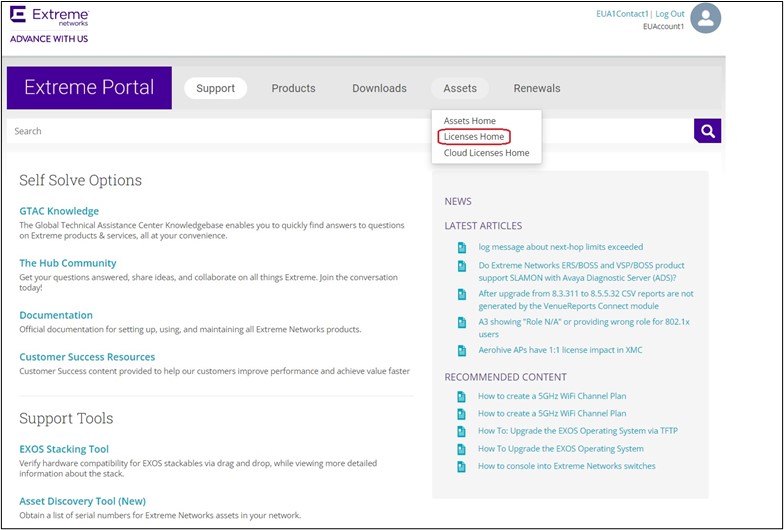

  4. Select the Assets tab. Then select Licenses Home from the list.
    The Licenses Home window appears.
    Click to expand in new window
    Click to expand in new window

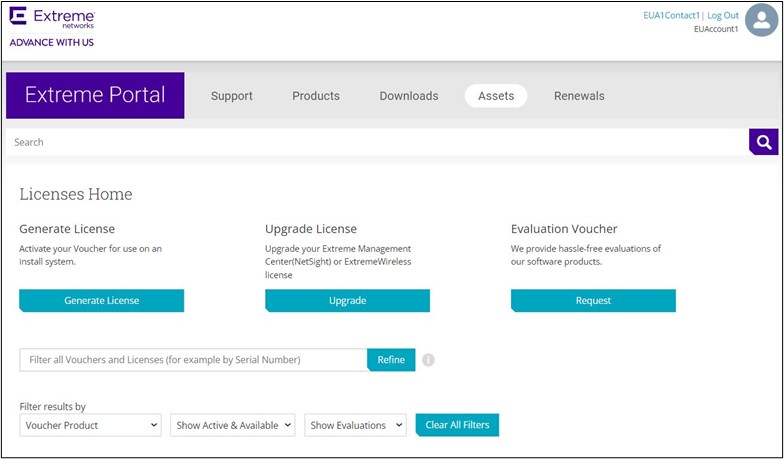

    Licenses Home window
  5. From the Licenses Home page. Select Generate License.
    The Generate License window appears.
    Click to expand in new window
    Generate License window

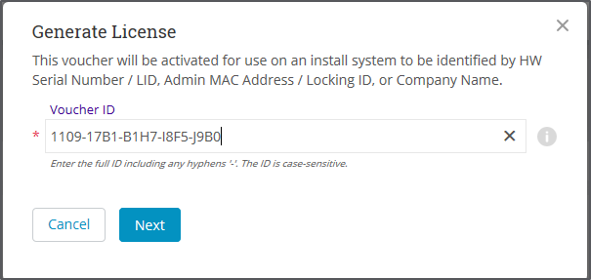

  6. Enter the Voucher ID (VID). Then select Next.
    The VID contains 20 alphanumeric characters with hyphens.
  7. Enter the unique identifier of the HW (or the serial number of the LID). Then select Submit.
    Note

    Note

    You must check the box to agree to the Terms and Conditions.
    Click to expand in new window
    HW serial number window
  8. The VID is displayed. The following example shows voucher information for a non-capacity license.
    Click to expand in new window

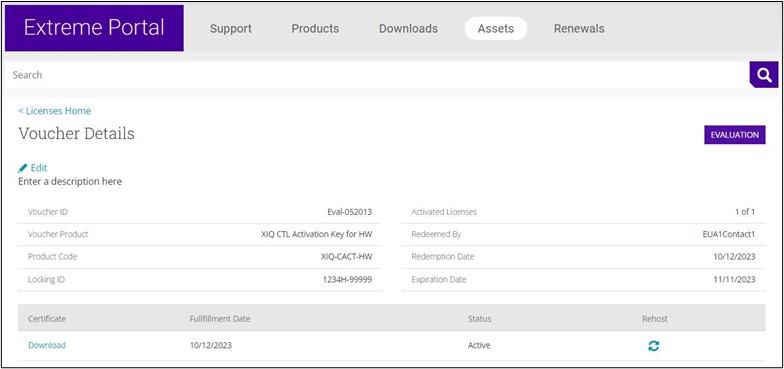

    Voucher Details window
  9. Select Download to download a copy of the license.
    A license can be downloaded after license generation or when a unit is queried. The license is not emailed.
    The following example shows the contents of the XML license, including the license SKU and license keys:
    21 PRD-XCO-EFA-D Ni LONG NORMAL STANDALONE AGGR 1_KEYS INFINITE_KEYS 12 OCT 2023 0 0 11 NOV 2023 23 59 NiL SLM_CODE CL_ND_LCK NiL *1MTFRGRCYEDRBP20400 NiL NiL NiL 5_MINS NiL 0 0XoTcNq2rzqlqeW04TQ5d8sjR/ztUtxYVD1aEA12wGoJ+f8bRyV1tGSvelpKuM24U+iADhp24YsLNTIbTnoY9ot2TsHk3Ant12zrglOoLtf8TEY9+MjlIjXLCV56of3gTvTV0ssmtuECK8HOhfGZriYvQ1Ckiym7Sp7JV23fqc6KEa6mtRzUke5ljt+CyH5sjxkEVNr6cVTgkc1AY/Ynch0tYBw/DRO6d/6MqfBCsC/FPCLSsSG0c5BHI28d9RGNEsKN+Cd7P1eqVKH1wISB7oPupqL8zjFgV6etKnYW6bSZyrL7yrp2C//jUYuEy4CbPFdXo3sYN3+AAc7NhDX6avfY9EPCN12Yw6cJevPND4VU0CTW2asHhUBVyWUD29y0q1FQ3HgP3qREnXr5f1Rm54Zodkae+oPX0gA0mdN3xgGrrDRG+sG7Q0aV//l4spUlWNvE/WwuvfzrIbs9jAOg0R1BOHQTcrTLoFFwZSO5jPEFBFJDQjILgwkFBFJDQjIGAQEHAQEEJThiMWI2ZjFkLTM3NjktNGY0ZS1iMzg3LTM0ZTMyZWU5NjNiZAAIAQEJQOEpEHKfc/wB+6v/DsEwOlbbFarKiMWViJSVG4lCC+QJDgLCYiG7kVqNMf/R9RS9O9fRLjAINmGbiWHnl5+ktdUKgg4wggEKAoIBAQDArKpEU82d/hfQ/AwK/kzI6A+TndWRiriQ9MGZge2CkQ5AWKi56yrWWBvp032/qXuWpfIMby9vu9MmU7N1pvsySRUjGsivYRwoQekLUxNiiEMJglBG2/mS9u0/uli7Lln+pJ6JgTB5O6nKLnJL78qMOb87wkzD4qJfE0pggPfpoLlaWPoKUcth+dnzQ4C2gS2iqL2dwLyBR8WcjleCXHsyJtkS6lBvHOTNgQCFdb6wBIRPqj0IXB8mFKaNCcLRuVCO+IQziyuYYA8p2IFMEGA/eEriJNS1hYpJLSY2Kmme9+qZY9VkDUtH31rXOsl3pvSyyc89KxEUywy7skZHadCBAgMBAAEEJThiMWI2ZjFkLTM3NjktNGY0ZS1iMzg3LTM0ZTMyZWU5NjNiZAAHAQEMggBsn4aOQtPJdtR6QR8I3pG0bxuw0u/0W8oro1GgWvjFEAJjEv6POicbCxvZF1clXSbjCOzPW5a+rF2ownaO+tc5ol4mBSwoUZtdcFeoDwSa4p0SWrmAIrPBkR9P3MOufjLn/qF8kwPZpgd5nW2TX2crr0/0S6PItYMYtjKEROBpqXHI5gZZ5IbMrEsXn4TloAPdI+z3njBejw7CJ7UxzaAswPEMmdNTNf+4ywr0JvqCmTNaLt9DIvcaSVh4gphYsmX/xLFWNDQvnXFp7YkfKuteFxHEgzKFJv5fmUtvur1COPzXP9Omwx6s+U/qw7D6ojXkw6yC/CW9COhIE+Fvy2vLAAACvw==#RMS 9.7#AID=9074f7f6-dcf5-46b5-8b15-a4370a56807e
9038968-00 Rev AB
